Audio

In this article, we will discuss audio on Cosmos Gen3: how to find the sound card, play a tone, play a WAV file and generate sound of your own. Sound goes out through an Intel High Definition Audio controller, the audio standard of PC chipsets since 2004 and the sound card QEMU emulates as intel-hda.

The main differences if you come from Gen2:

Gen2 Gen3
Audio API Cosmos.System.Audio Cosmos.Kernel.System.Audio
Sound card drivers AC97 Intel HD Audio over the driver kit (x64 and ARM64)
Setup An AudioManager with a Stream and an Output, then Enable() None: the driver kit publishes the output at boot, and AudioManager.Play(stream) plays through it
Mixing AudioMixer over several streams One stream per output at a time
Console.Beep PC speaker A square wave through the sound card
WAV files MemoryAudioStream.FromWave MemoryAudioStream.FromWave, plus WaveAudioStream, which streams a file off a volume
Playback In the background once Enable() ran On the calling thread with AudioManager.Play, or on a thread of its own with AudioManager.TryStartPlayback

If you find bugs or something abnormal, please submit an issue on our repository.

Enable audio in your kernel

Audio support is behind a feature switch. Make sure your kernel's .csproj does not turn it off (it defaults to true):

<PropertyGroup>
  <CosmosEnableAudio>true</CosmosEnableAudio>
</PropertyGroup>

The sound card is a PCI function, so turning CosmosEnablePCI off, or CosmosEnableInterrupts, which turns PCI off with it, turns audio off as well.

At boot a sound card reaches AudioManager through the driver kit, like a NIC reaches NetworkManager. HdAudioDriver, shipped in Cosmos.Kernel.Drivers, binds every PCI function of class 04.03.00, the HD Audio controller class, so the one driver covers any controller that follows the specification rather than a list of device ids. It finds a converter and an output pin on the codec behind the controller and publishes an output named hda, which the manager lists as its primary. QEMU attaches no sound card by default, so ask cosmos run for one, on either architecture:

$ cosmos run --audio intel-hda        # the ICH6 HD Audio controller, the one the test suite runs on
$ cosmos run --audio ich9-intel-hda   # the ICH9 one

An HD Audio controller is a bus rather than a sound card on its own: the codec that turns samples into sound sits behind it, so cosmos run attaches QEMU's hda-duplex codec beside the controller. The sound plays on your host through QEMU's default audio backend (PipeWire, PulseAudio, ALSA, CoreAudio or DirectSound, depending on the host).

The serial log shows the driver binding the controller:

[Audio] primary: HdAudioDriver "hda"
[Drivers] pci:0000:00:02.0 HdAudioDriver published device "hda" (consumed)
[Drivers] pci:0000:00:02.0 HdAudioDriver: version 1.0, codec 0 converter 2 pin 3, stream 4 (4 in, 4 out), 48 kHz stereo 16-bit, line 11

The last field says whether the controller's interrupt line reached the driver. It reads line 11 above, on an x64 machine with no NIC. It reads no line on ARM64, where the kit routes no PCI legacy line, and on x64 next to the default e1000e NIC, which holds the line the controller shares with it. Either way the output plays the same: the player tracks the stream engine's position rather than waiting for the interrupt.

These are the usings the snippets below rely on:

using System.IO;
using Cosmos.Kernel.HAL.Devices.Audio;   // AudioFormat, for the sound you generate (COSMOS0003)
using Cosmos.Kernel.System.Audio;
using Cosmos.Kernel.System.FileSystem;
using Cosmos.Kernel.System.Timers;

The audio output

AudioManager owns the outputs the driver kit published. Check that one is there before playing anything:

if (!AudioManager.IsEnabled)
{
    Console.WriteLine("Audio is compiled out (CosmosEnableAudio=false)");
    return;
}

AudioDevice? output = AudioManager.Primary;
if (output is null)
{
    Console.WriteLine("No audio output: attach one with cosmos run --audio intel-hda");
    return;
}

Console.WriteLine("Output:  " + output.Name + " (" + output.DriverName + ")");
Console.WriteLine("Node:    " + output.NodePath);
Console.WriteLine("Format:  " + output.SampleRate + " Hz, " + output.Format.Channels + " ch, "
    + (output.Format.ChannelSize * 8) + "-bit");

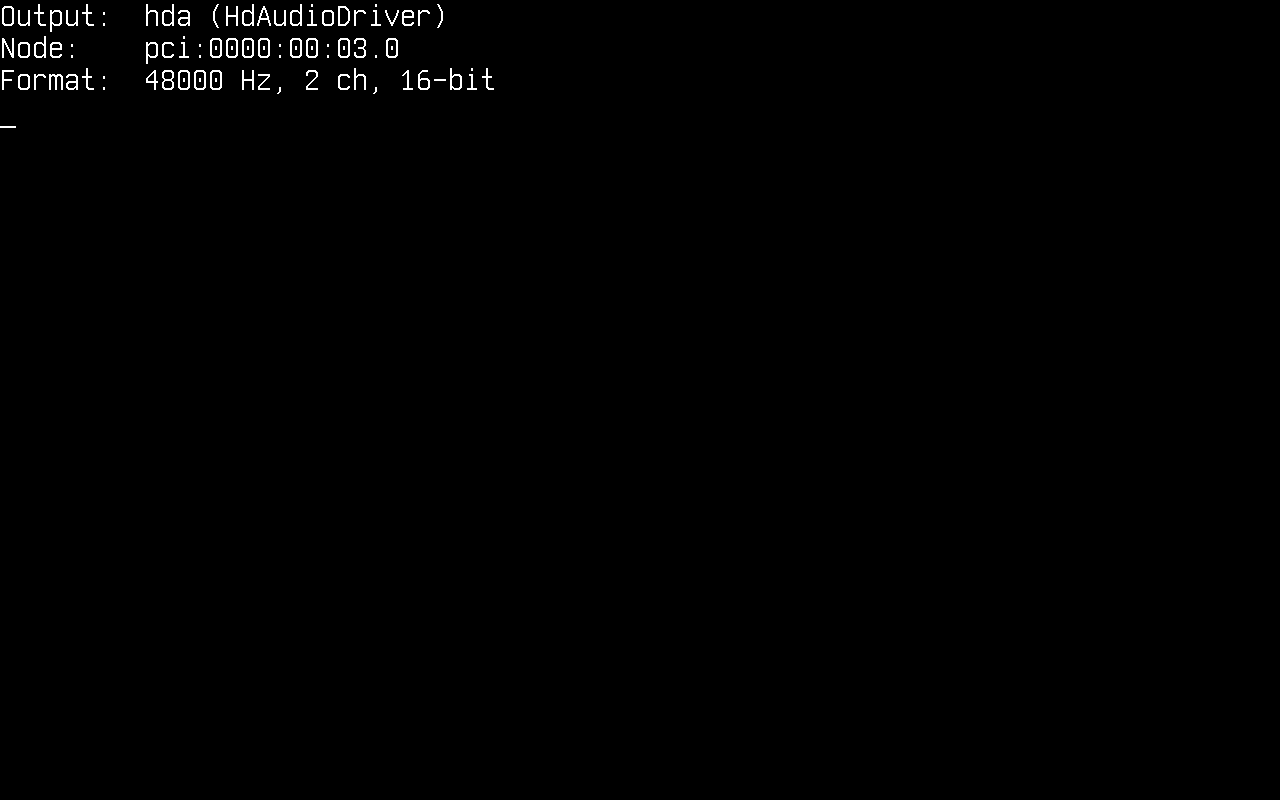

The audio output

An AudioDevice reports the format it is programmed for (48 kHz signed 16-bit stereo until something plays at another rate), whether its stream engine IsRunning, and the Player feeding it now, null while it is idle. Once the kit withdraws the output, IsWithdrawn turns true and every call on it does nothing.

With more than one sound card, enumerate them. The list is kept in node-path order, primary first, so the primary does not depend on which driver probed first:

for (int i = 0; i < AudioManager.Count; i++)
{
    if (AudioManager.TryGet(i, out AudioDevice? device))
    {
        Console.WriteLine($"[{i}] {device.Name}  {device.NodePath}");
    }
}

AudioManager.Play and AudioManager.TryStartPlayback always use the primary. To play on another output, hand it to an AudioPlayer or to AudioPlayback.TryStart (both below).

Playing a tone

The quickest way to make a sound needs no file and no setup: Console.Beep, which the kernel plugs onto the primary output.

/* The Windows default: 800 Hz for 200 ms */
Console.Beep();

/* A C major scale, a quarter of a second per note */
int[] notes = { 262, 294, 330, 349, 392, 440, 494, 523 };
foreach (int note in notes)
{
    Console.Beep(note, 250);
}

The tone is a square wave at a quarter of full scale, and the call returns once it has played, as it does on Windows. It also refuses the same arguments Windows refuses: a pitch below 37 Hz or above 32767 Hz, or a duration of zero or less, throws ArgumentOutOfRangeException. When there is nothing to play on (no output published, audio compiled out, or another playback holding the output), it returns at once and plays nothing.

.NET marks Console.Beep(int, int) as Windows-only, so the call raises the CA1416 platform warning. The kernel implements it anyway; suppress the warning around the call, or for the whole project:

<PropertyGroup>
  <NoWarn>$(NoWarn);CA1416</NoWarn>
</PropertyGroup>

Playing a WAV file

MemoryAudioStream.FromWave reads a .wav file that is already in memory, and AudioManager.Play plays it through the primary output, returning once the last frame has played:

/* chime.wav is a 16-bit stereo PCM file on the FAT partition mounted at /mnt */
MemoryAudioStream chime = MemoryAudioStream.FromWave(File.ReadAllBytes("/mnt/chime.wav"));

if (!AudioManager.Play(chime))
{
    Console.WriteLine("No output, or the output refused the file's format");
}

FromWave throws ArgumentException for a file that is not an uncompressed PCM RIFF/WAVE. The reader walks the file's chunk list, so a file carrying LIST or fact chunks before its samples reads like any other. Play returns false when no output is published or when the output refuses the stream's format.

That last case matters, because the reader understands more than the sound card plays:

The WAV reader accepts The HD Audio output plays
Encoding PCM and WAVE_FORMAT_EXTENSIBLE Signed PCM
Bits per sample 8, 16, 24, 32 16
Channels 1 to 255 2
Sample rate Any 8, 9.6, 11.025, 12, 16, 22.05, 24, 32, 44.1, 48, 88.2, 96, 144, 176.4 and 192 kHz

Nothing is converted or resampled on the way: a mono, 8-bit or 24-bit file is refused rather than played at the wrong speed or pitch. Convert it on your host before copying it over, for example with FFmpeg, which also decodes MP3, OGG and FLAC:

$ ffmpeg -i song.mp3 -ac 2 -ar 48000 -c:a pcm_s16le song.wav

A sound is just a file, so the easiest way to ship one is on the FAT disk from the File System article, under a FAT-friendly name. A kernel that runs the FTP server from the Network article can also receive one from the host while it runs: curl -T song.wav ftp://localhost:2121/.

Playing in the background

FromWave holds the whole file in memory and Play holds the caller for the length of the audio, which suits a short chime. For a song, stream the file off the volume with WaveAudioStream, a block at a time in a fixed amount of memory, and play it on a thread of its own with AudioManager.TryStartPlayback, so the kernel keeps running while it plays:

if (!VfsManager.TryOpenFile("/mnt/song.wav", out IVfsFileHandle? file))
{
    Console.WriteLine("File not found");
    return;
}

if (!WaveAudioStream.TryOpen(file, out WaveAudioStream? song))
{
    Console.WriteLine("Not a PCM .wav file");
    file.Dispose();
    return;
}

uint seconds = song.Length / song.SampleRate;
Console.WriteLine("Playing " + seconds + " s of audio");

/* The playback thread reads the file as it plays, and disposes of it when it is done */
if (!AudioManager.TryStartPlayback(song, file, out AudioPlayback? playback))
{
    Console.WriteLine("No output, the output is busy, or no scheduler to run the playback on");
    file.Dispose();
    return;
}

The second argument is whatever the stream reads from: the playback disposes of it once its thread is done, so the file handle goes with the playback and the caller forgets it. When TryStartPlayback returns false, nothing was started and the handle is still the caller's to close. Pass null for a stream that needs nothing released.

WaveAudioStream is a SeekableAudioStream, so it reports its Length and its Position in frames, and Rewind() or a new Position moves it. The AudioPlayback reports where the playback has got to, and Stop() ends it early:

while (playback.IsPlaying)
{
    Console.WriteLine((song.Position / song.SampleRate) + " s of " + seconds + " s");

    if (Console.KeyAvailable && Console.ReadKey(true).Key == ConsoleKey.Escape)
    {
        /* Returns at once; the state turns Stopped shortly after */
        playback.Stop();
    }

    TimerManager.Wait(500);
}

if (playback.State == AudioPlaybackState.Completed)
{
    Console.WriteLine("Played to the end");
}
State Meaning
Playing The thread is still feeding the output
Completed The stream was played to its end
Stopped Stop() ended it early; what the output still held was dropped
Failed The output refused the stream's format, was withdrawn or stopped taking frames, or reading the stream threw; a thrown exception is written to the serial log as [Audio] playback failed: ...

Three things to know about background playback:

  • It needs the scheduler. Without CosmosEnableScheduler there is no second thread to play on and TryStartPlayback returns false. AudioManager.Play(stream) plays the same stream on the calling thread instead.
  • One playback per output. A playback claims the output from the moment TryStartPlayback returns true until it ends, so a second TryStartPlayback, a Play or a Console.Beep meanwhile is refused. Code that does not hold the AudioPlayback stops whatever is playing with AudioManager.Primary?.Player?.RequestStop().
  • Leave the volume alone while it plays. The playback thread reads the file while the rest of the kernel runs, and the filesystem layer has no locking of its own. Writing to the same volume until IsPlaying turns false is asking for trouble.

Position counts the frames read from the stream, which run ahead of what you hear by the frames already queued in the sound card's buffer, about a tenth of a second at 48 kHz.

Generating sound

Samples you compute yourself play the same way. The format of a stream is an AudioFormat: bits per channel, channels per frame and whether samples are signed, with AudioFormat.Stereo16 the one the HD Audio output plays. A frame interleaves one sample per channel, left then right, each sample a little-endian signed 16-bit value.

AudioFormat and AudioBitDepth belong to the driver kit's experimental seam, so naming them is a build error carrying the COSMOS0003 diagnostic (Public API Tracking) until the kernel project acknowledges the missing compatibility promise. Reading a format, as output.Format.Channels does above, needs nothing:

<PropertyGroup>
  <NoWarn>$(NoWarn);COSMOS0003</NoWarn>
</PropertyGroup>

For a short sound, fill a buffer and wrap it in a MemoryAudioStream:

const uint SampleRate = 48000;
AudioFormat format = AudioFormat.Stereo16;

/* One second of a 440 Hz sine wave, at a quarter of full scale */
int frames = (int)SampleRate;
byte[] data = new byte[frames * format.FrameSize];

for (int i = 0; i < frames; i++)
{
    short sample = (short)(Math.Sin(2 * Math.PI * 440 * i / SampleRate) * 8192);

    Span<byte> frame = data.AsSpan(i * format.FrameSize, format.FrameSize);
    BitConverter.TryWriteBytes(frame, sample);       // left
    BitConverter.TryWriteBytes(frame[2..], sample);  // right
}

AudioManager.Play(new MemoryAudioStream(format, SampleRate, data));

A long or endless sound is better computed as it is read, so it costs no memory: derive from AudioStream and fill the buffer the player hands to Read. The base class carries no length on purpose, so a stream can play forever, as a synthesizer, a mixer of your own or a game's soundtrack does:

/* A sine wave worked out as it is read: it costs no memory and never runs out */
internal sealed class SineStream : AudioStream
{
    private const uint Rate = 48000;

    private readonly double _step;
    private double _phase;

    public SineStream(double frequency)
    {
        _step = 2 * Math.PI * frequency / Rate;
    }

    public override AudioFormat Format => AudioFormat.Stereo16;

    public override uint SampleRate => Rate;

    public override bool Depleted => false;

    public override int Read(Span<byte> destination)
    {
        int frameSize = Format.FrameSize;
        int frames = destination.Length / frameSize;

        for (int i = 0; i < frames; i++)
        {
            short sample = (short)(Math.Sin(_phase) * 8192);

            Span<byte> frame = destination.Slice(i * frameSize, frameSize);
            BitConverter.TryWriteBytes(frame, sample);
            BitConverter.TryWriteBytes(frame[2..], sample);

            _phase += _step;
            if (_phase >= 2 * Math.PI)
            {
                _phase -= 2 * Math.PI;
            }
        }

        return frames * frameSize;
    }
}

Read returns the bytes it wrote, always a whole number of frames, and the player stops reading once Depleted turns true or Read returns 0. A stream that never runs out has to be stopped, so play it in the background:

if (AudioManager.TryStartPlayback(new SineStream(440), null, out AudioPlayback? playback))
{
    TimerManager.Wait(2000);
    playback.Stop();
}

Writing frames yourself

The player is a convenience over AudioDevice, which a kernel can also drive directly, for instance from a game loop that mixes its own sound effects. The device takes frames into a cyclic buffer that its stream engine drains on the codec's clock: Write copies whatever fits and returns the bytes it took, 0 when the buffer is full, and never blocks.

AudioDevice? output = AudioManager.Primary;
if (output is null || output.Player is not null || !output.TrySetFormat(AudioFormat.Stereo16, 48000))
{
    return;
}

SineStream source = new(440);
byte[] chunk = new byte[4096];
output.Start();

/* 500 chunks of 1024 frames: about ten seconds */
for (int pass = 0; pass < 500; pass++)
{
    int length = source.Read(chunk);
    int written = 0;
    while (written < length)
    {
        int took = output.Write(chunk.AsSpan(written, length - written));
        if (took == 0)
        {
            /* The buffer is full: the codec is playing what it has */
            TimerManager.Wait(5);
            continue;
        }

        written += took;
    }
}

output.Stop();

The rules the device holds you to:

  • TrySetFormat works only while the device is stopped; a running device keeps the format it has and returns false.
  • Keep it fed. Silence plays while the buffer is empty after Start(), but the buffer is cyclic, so a writer that falls behind for long hears old frames come round again.
  • Stop() drops whatever the buffer still holds. To hear the tail of a sound, write a buffer's worth of silence after it first (WritableBytes right after TrySetFormat tells you how much that is), which is what the player does.
  • Writing directly claims nothing. Check Player is null before you start; a Play or Console.Beep arriving while you write is refused, because the running device refuses its format change.

Trying it in the DevKernel

The DevKernel has four audio commands, written over the calls in this article (AudioCommands.cs):

Command What it does
audio Lists every output with its driver, node, format and what it is playing (12s of 180s)
beep [hz] [ms] Plays a tone through Console.Beep, 800 Hz for 200 ms by default
play <path> Streams a .wav off a mounted volume in the background
stop Stops whatever is playing

Its .cosmos/config.json attaches an intel-hda controller and an NVMe disk and forwards the FTP ports, so a file uploaded with ftpd (see FTP server) plays with play.

Current limitations

  • Intel HD Audio is the only sound card driver: no AC97, Sound Blaster, virtio-sound or USB audio, and no PC speaker. Without an HD Audio controller, Console.Beep returns at once and plays nothing.
  • Playback only. Nothing records: the codec's inputs, including the line-in of QEMU's hda-duplex, are left unused.
  • One format: signed 16-bit stereo, at the rates in the table above. Streams in another layout or at another rate are refused rather than converted or resampled.
  • No mixer: an output plays one stream at a time, and a second playback, Play or Console.Beep is refused until it ends.
  • No volume control. The driver opens the codec's amplifiers to full gain; scale your samples to play quieter.
  • The driver plays through the first converter and the first pin able to output on the first codec that has both. On a machine with several jacks that may not be the one you are listening to, and a computer's HDMI or DisplayPort audio, when it is a separate HD Audio controller, is published as an output of its own that can sort first.
  • WAV is the only file format the kernel reads; there is no MP3, OGG or FLAC decoder.

How it works

At boot the library initializer installs the audio manager's consumer of the driver kit before the driver stage runs, so the manager sees every output a driver publishes. HdAudioDriver binds the controller's PCI function, resets it, brings up the command and response rings the codecs are spoken to through, and walks each codec's widgets for an output converter and a pin that can drive an output. It points the pin at the converter, opens their amplifiers, turns on the external amplifier many laptops need for their speakers, programs the first output stream over a 16 KiB cyclic DMA buffer split into four 4 KiB periods, and publishes the output as hda (any driver can publish one: Publishing a device).

AudioPlayer does the playing, whether AudioManager.Play, a background AudioPlayback or the Console.Beep plug (which plays a generated square wave) started it. It claims the output, programs it for the stream's format and rate, starts the stream engine and reads the stream 1024 frames at a time into a staging buffer, writing each into the device's buffer as room comes free. The device works the room out from the engine's own position, which is why the player needs no interrupt, and keeps the period just ahead of the writer silent, so a writer that falls briefly behind underruns into silence. The completion interrupt, where the line connects, only tells the manager that room came free. When the buffer is full the player waits 5 ms, as a scheduler sleep on a thread the scheduler owns and on the timer otherwise, and gives up once a whole second passes without the device taking anything. At the end of the stream it writes one buffer of silence, so the last frames reach the codec before the engine stops.

Console.Beep / AudioManager.Play / AudioManager.TryStartPlayback
        │
AudioStream ── WaveAudioStream (a volume), MemoryAudioStream, your own   (Cosmos.Kernel.System.Audio)
        │  read 1024 frames at a time
AudioPlayer ── claims the output, writes what fits, waits 5 ms when full
        │
AudioManager ── AudioDevice (primary first)
        │
driver kit: IAudioOutput "hda"                                           (HdAudioDriver, Cosmos.Kernel.Drivers)
        │  16 KiB cyclic DMA buffer, drained on the codec's clock
HD Audio controller → codec converter → pin → speakers (or QEMU's audio backend)
